YHZS60 modular mobile concrete plant

YHZS60 modular mobile concrete plant

HZS60 modular mobile concrete mixing plant is special construction concrete equipment designed by our company as module. It is applied for airport way, wharf, road, bridge and so on

Product Detail

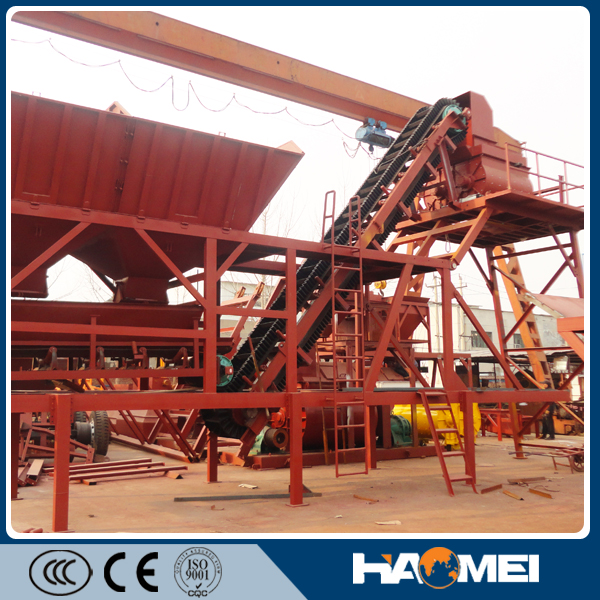

YHZS60 modular mobile concrete mixing plant is special construction concrete equipment designed by our company as module. It is applied for airport way, wharf, road, bridge and so on, It can also be used for the large and emergency repair construction operation. It can be installed quickly on site. This mixing plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment, and they are designed as module .So We can deliver YHZS series concrete plant easily by container, and install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability.

YHZS60 modular mobile concrete mixing plan

Item

YHZS60(3.8m)

theoretical productivity

60m3/h

weighing scale

concrete

3000kg


cement

720kg


water

360kg


liquid addictive

36kg

overall power

about 85KW

(optional parts not included)

power source

380V/50HZ

discharging height

3.8m

overall weight

24t(optional parts not included)

trail speed

≤40km/h

specification

(LxWxH)

during work

17.7x3.6x8.2m


during transportation

18.3x2.4x4.35m
