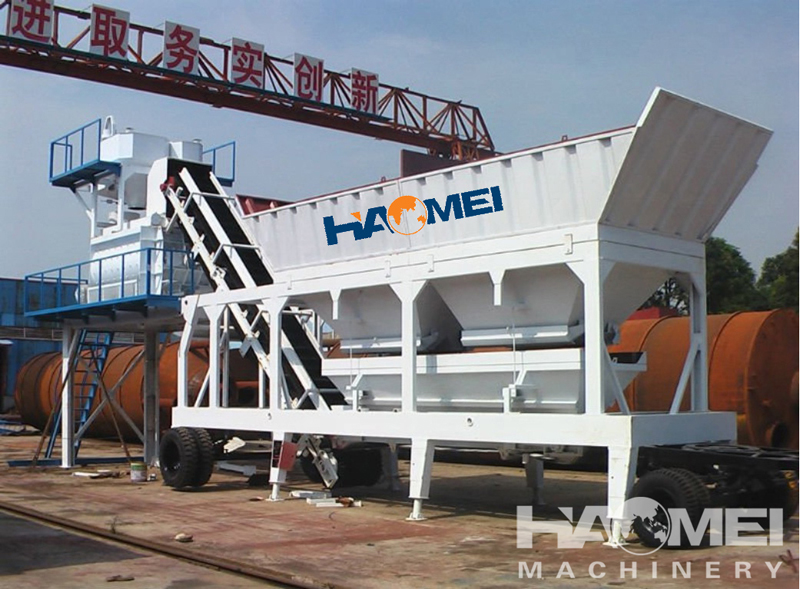

YHZS25 mobile concrete plant

YHZS25 mobile concrete plant

YHZS25 mobile concrete plant is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure

Product Detail

YHZS25 mobile concrete plant is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.

YHZS25 mobile concrete plant

Item

YHZS25(3.8m)

theoretical productivity

25m3/h

weighing scale

concrete

2000kg



cement

510kg



water

150kg



liquid addictive

15kg

overall power

about 60KW

(optional parts not included)

power source

380V/50HZ

discharging height

3.8m

overall weight

20t(optional parts not included)

trail speed

≤40km/h

specification

(LxWxH)

during work

17x3.6x8.2m



during transportation

17.6x2.4x4.35m


Configuration Table

No.

Description

Specification

1

Feeder (batching station)

Aggregate hoppers

Sand hopper with a vibrator

4m3

Mesh cover

100×100

Air cylinder

QGB80×250

Weighing hopper

2m3

Belt

B650×10×8400

Electromotion drum

YD40106532

Weighing sensors

CBLGM-S/1000

Clean device







2

Lifting belt conveyor

Trough belt

B650×120×13400

Electromotion drum

YD401256540

Clean device







3

Cement weighing

Cement weighing hopper

0.4m3

Motor

7.5Kw

Weighing sensor

CBLGM-S/200

Butterfly valve

V1FS300SN

Canvas cover

Φ200×600

Canvas cover

Φ310×300





4

Water weighing

Water weighing bin

0.3m3

Water pump

65JDB35-8-0.75 Kw

Immersible pump

1.1Kw

Weighing sensor

CBLGM-S/500





5

Additive weighing

Additive weighing bin

0.05m3

Butterfly valve

Φ65

Anti-corrosion pump

25CQ-15(0.75Kw)

Weighing sensor

CBLGM-S/200

Additive Storage bin

1m3





5

Mixer

Mixer

JD500

Motor

Y180L-4   18.5Kw

Gearbox

XWD8-17

Air cylinder

QGB-ZZ125×150-L3

Oil lubricator

SNB10-6J





6

Chassis

Main frame



Front chassis

900-20

Rear chassis

825-12





7

Electric system

Air compressor

5.5Kw

Electric solenoid

Q25DC-L15

Air regulation/lubricator/filter combine

QFLJM-L15

Connector



Muffler

L15

Air tubes

Φ10×12mm





8

Control system

Industrial computer



Plc controller



Console



Electric bin



Electric elements



Air conditioned control room



Cables







9

Spare parts and tools with equipment

Relay

DC24V

Relay

AC220V

Monkey wrench

12”

pliers



Screwdriver

8”

Socket spanner and open end spanner

8

Grease lubricator



Hammer

2Pound

Oil lubricator



Oil sealing

For mixer axial end

Oil sealing

For mixer axial end

Mixer paddle

For mixer

scaleboard

For mixer
