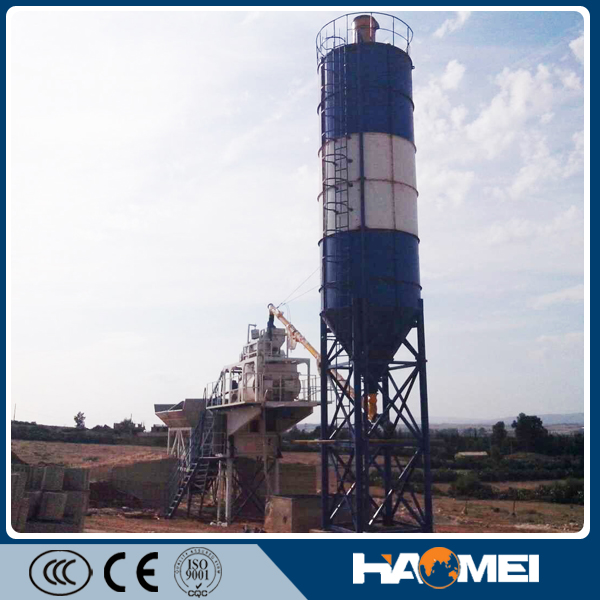

60m3/h Mobile Concrete Mixing Plant

60m3/h Mobile Concrete Mixing Plant

Mobile Concrete Batching Plant 60 tons per hour is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating

Product Detail
60m3/h Mobile Concrete Mixing Plant
60m3/h Mobile Concrete Mixing Plant
60m3/h Mobile Concrete Mixing Plant

Quick Details

Condition: New

Place of Origin:Henan, China (Mainland)

Brand Name: HAOMEI

Model Number: YHZS60

Theoretical Productivity:60m3

Volume of Aggregate Bin: 2x11m3(number of bins 2~4 optional)

Aggregate Diameter: ≤80mm

Discharging Height: 3.8m

Power: 380v/50Hz

Total Weight: 20000kg (without optional parts)

Outside Dimension in Working: 17mX3.6mX8.2m

Outside Dimension in Transportiong: 17.6mX2.4mX4.35m

Packaging & Delivery

Packaging Details: Standard Export Packing

Delivery Detail: 30 days after receiving the deposit

Mobile Concrete Batching Plant 60 tons per hour is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete mixing plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.

Mobile Concrete Bathing Plant 60 tons per hour

Technical Parameters of Portable Concrete Mixing Plant :

Item

YHZS25(3.8m)

theoretical productivity

25m3/h

weighing scale

concrete

2000kg


cement

510kg


water

150kg


liquid addictive

15kg

overall power

about 60KW

(optional parts not included)

power source

380V/50HZ

discharging height

3.8m

overall weight

20t(optional parts not included)

trail speed

≤40km/h

specification

(LxWxH)

during work

17x3.6x8.2m


during transportation

17.6x2.4x4.35m

mobile concrete batching plant certificate
