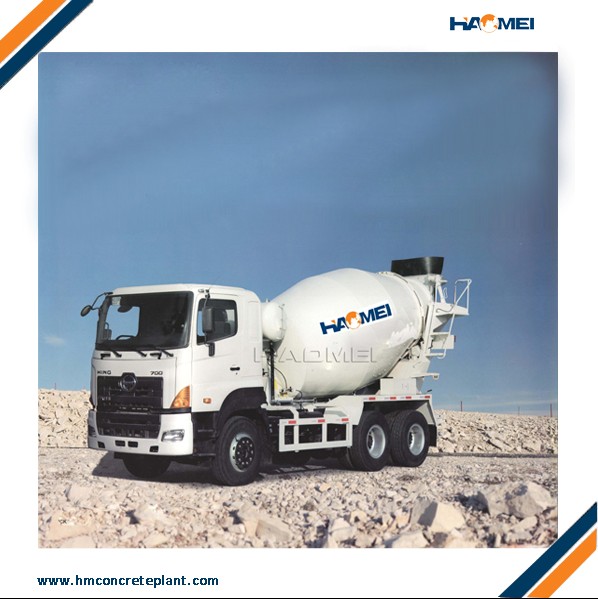

Haomei Concrete Truck Mixer includes many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part are available to choose
Haomei Concrete Truck Mixer includes many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part are available to choose
Product Advantage:
1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system.
Technical parameters:
Model |
HM6-D |
|
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
6 |
Tank Volume |
m³ |
9.96 |
Feeding Speed |
m³/min |
≥3 |
Discharging Speed |
m³/min |
≥1.5 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
260 |
Overall Dimension |
mm |
8450*2496*3835 |
Chassis Model |
|
Steyr |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
297 |
Max Speed |
km/h |
75 |
Engine Max Output Power |
kw |
247 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
12600 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
3225+1350 |
