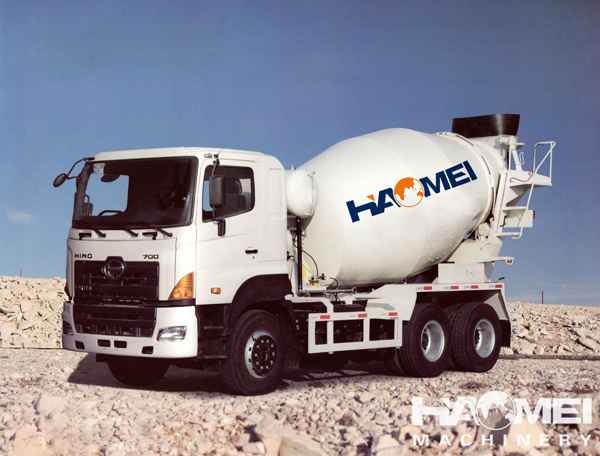

HM6-D Concrete Truck Mixer

HM6-D Concrete Truck Mixer

Concrete Truck Mixer has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development

Product Detail
The Concrete Truck Mixer is a main equipment of construction machinery during commercial concrete transportation and deposition.
Concrete Truck Mixer has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development

haomei serial Concrete Truck Mixer is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
Haomei Concrete Truck Mixer has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works. Haomei Concrete Truck Mixer includes many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part are available to choose
Features of Concrete Truck Mixer:
Concrete truck mixers(concrete transport trucks/in–transit mixers) are charged with dry materials and water, with the mixing occurring during transport. Or sometimes some concrete truck mixers can be loaded with 'Ready Mixed' concrete. Applications of Concrete Truck Mixer:
Concrete truck mixers(concrete transport trucks/in–transit mixers) are widely applied in the construction site to provide concrete for road-making, bridge-building, channel-making, etc.
Working principle of Concrete Truck Mixer:

These concrete truck mixers draw out the power for the truck chassis to drive the variable pump in the hydraulic system. So as the mechanical energy can be changed into hydraulic energy then passed to rated motor. Then the motor drives the redactor which can start the mixer/drum and mix the concrete.

Product Advantage:

1. High-intensity drum material, featuring better wear-resistance and long service life;

2. Optimized mixing blades, low material residue;

3. High-quality parts, reliable running;

4. Excellent performance and convenient operation;

5. Imported original hydraulic system.



Technical parameters:

Model

HM6-D

Specification

Unit

Value

Mixing Capacity

6

Tank Volume

9.96

Feeding Speed

m³/min

3

Discharging Speed

m³/min

1.5

Residual Ratio of Discharging

%

0.5%

Water Supply System

Air pressure

Water Tank Volume

L

260

Overall Dimension

mm

8450*2496*3835

Chassis Model

Steyr

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

297

Max Speed

km/h

75

Engine Max Output Power

kw

247

Emission Standard

Euro

Rated Load

kgs

12600

Overall Weight

kgs

25000

Wheelbase

mm

3225+1350
