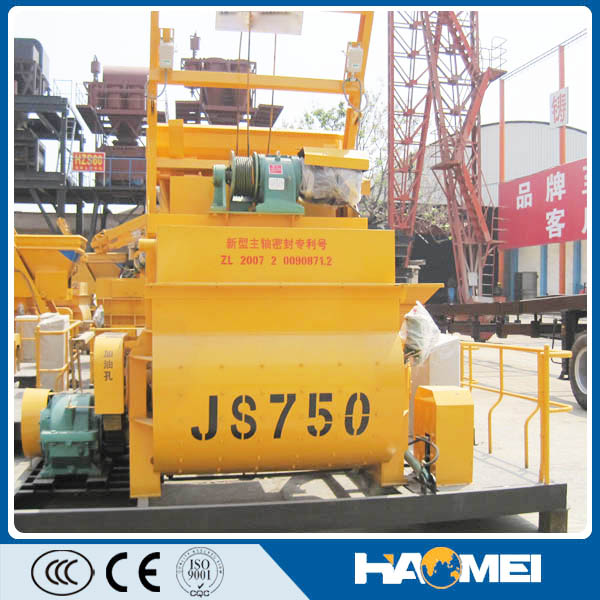

aomei JS series concrete mixer is twin-shaft compulsory mixer.Not only it can work independently, but also it can be adopted as the mixer in the high-end concrete batching plant.
Quick Details
Condition: New
Place of Origin: Henan, China (Mainland)
Brand Name: Haomei
Model Number: JS2000
Motor Power: 2X37KW
Mixing Power: 2X37KW
Charging Capacity: 3000L
Reclaiming capacity: 2000L
Speed of Mixing Drum: 24.5r/min
Water Supply Mode: Automatic water supply pump
Working Cycle Period: 60s
Discharge Way: Hydraulic
Outline Dimension: 3460x2320x2140mm
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 120 m3/h and above
Weight: 7500 kg
Mixing Blades Quantity: 14
Mix time: ≤30 s
Mixing Blades Speed: 25 r/min
Mixing Motor: Y225S-4-B3
Max.Aggregate Size: 80/100 mm
Certificatione: CE
Color: Yellow, Red or customization
Product name: Hot Sale Concrete Mixers, Concrete Mixer for Sale, JS Concrete Mixer
Packaging & Delivery
Packaging Details: Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight for Hot Sale Concrete Mixers, Concrete Mixer for Sale, JS Concrete Mixer
Delivery Detail: Shipped in 20 days after payment
Hot Sale Concrete Mixers, Concrete Mixer for Sale, JS Concrete Mixer
Model |
JS1000 |
JS1250 |
JS1500 |
JS2000 |
JS2500 |
JS3000 |
JS3500 |
JS4000 |
JS4500 |
|
Discharging Volume(L) |
1000 |
1250 |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
4500 |
|
Charging Volume(L) |
1500 |
1750 |
2250 |
3000 |
3750 |
4500 |
5300 |
6000 |
6750 |
|
Max. Aggregate Size(mm) |
80/100 |
80/100 |
80/100 |
80/100 |
80/100 |
80/120 |
80/120 |
80/150 |
80/150 |
|
Weight(Ton) |
5.20 |
5.50 |
5.80 |
7.50 |
8.50 |
9.20 |
9.60 |
12.20 |
12.50 |
|
Cycle Time(s) |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
≤ 60 |
|
Mixing Time(s) |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
|
Mixing Blades |
Speed(r/min) |
30 |
30 |
30 |
25 |
25 |
22 |
22 |
20 |
22 |
Quantity |
10 |
12 |
14 |
14 |
16 |
18 |
20 |
22 |
22 |
|
Mixing Motor |
Model |
Y180M-4-B3 |
Y180-4-B3
|
Y200L-4-B3 |
Y225S-4-B3 |
Y225M-4-B3 |
Y250M-4-B3 |
Y250M-4-B3 |
Y280S-4-B3 |
Y280S-4-B3 |
Power(KW) |
2x18.5 |
2x22 |
2x30 |
2x37 |
2x45 |
2x55 |
2x55 |
2x75 |
2x75 |
Haomei JS series concrete mixer is twin-shaft compulsory mixer.
Not only it can work independently, but also it can be adopted as the mixer in the high-end concrete batching plant.
It has the advantages of high efficiency, good mixing, compact structure, novelty appearance, easy to install, no leakage problem, less maintenance work, etc, it has won good reputation from our customers.
1. Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.
2. Unique mixer monitoring system to monitor working conditions of gearbox, discharge door pump, and electronic lubrication pump.
3. Special electronic lubrication pump, 4 separate independent pump cores for direct oil feeding without dividing valve.
4. Multi-pipe water sparying system to ensure even water distribution.
5. Adopt Italian BONFIGLIOLI reducer, long service life, low noise, no leak.
Packaging and Shipping |
Payment terms: |
30% of total price shall be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. |
Delivery time: | 10-15 working days after receiving down payment |
Container Loading: |
1 set JS2000 per 20 GP; 3 sets JS2000 per 40 GP |
