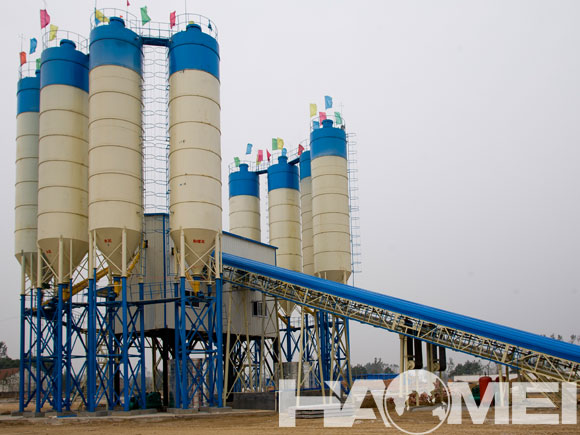

HZS150 Concrete Batching Plant

HZS150 Concrete Batching Plant

HZS150 concrete batching plant is composed of batching, mixing, electrical control and other parts of the full automatic concrete mixing equipment. It is suitable for medium scale or large construction, precast factory and commercial concrete production p

Product Detail
1. The Features of HZS150 Concrete Batching Plant:

1. Modular design structure, which is easy to install and disassemble

2. With JS3000 twin shaft compulsory concrete mixer, which has the high productivity and good mixing performance.

3. Suitable large size construction projects, eg, bridge, dam, road, school buildings,etc.

2. Description of HZS150 Concrete Batching Plant :

1. HZS150 concrete batching plant is composed of batching, mixing, electrical control and other parts of the full automatic concrete mixing equipment. It is suitable for medium scale or large construction, precast factory and commercial concrete production plant.

2. The overall appearance, convenient installation and disassemble, each layer of the packaging side can be opened, which is convenient for maintenance and replacement parts;

3. All materials scale adopts independent measurement, a scale of a table, which improves the measurement precision of aggregate lifting belt;

4. Machine adopts hanging type speed reducer, lateral stable operation, strong power and easy maintenance;

5. All the powder in the transportation, metering and delivery process are in a closed state. Completely eliminating the dust emission of the parts and stable transmission mechanism can effectively reduce the noise;

6. Mixer and belt machine all adopt environmental protection packaging thus, which can further reduce dust and noise pollution.

3. The Technical Parameters of HZS150 Concrete Batching Plant:

Model

HZS120

Specification

Unit

Value

Productivity

m3/h

120

Capacity of Mixer

m3

2

Discharge Height

m

3.8

Aggregate Bin

Quantity

4

Capacity of Aggregate Bin

m3

20

Aggregate Bin Capacity

m3

4.8

Max. Weighing Value of Aggregate

kg

2x4000

Max. Weighing Value of Cement

kg

1800

Max. Weighing Value of Water

kg

800

Max. Weighing Value of Additive

kg

50

Feeding Type

/

Belt

Cement Silo

/

Optional

Cement Screw Conveyor

/

Optional

Control Mode

/

Auto
