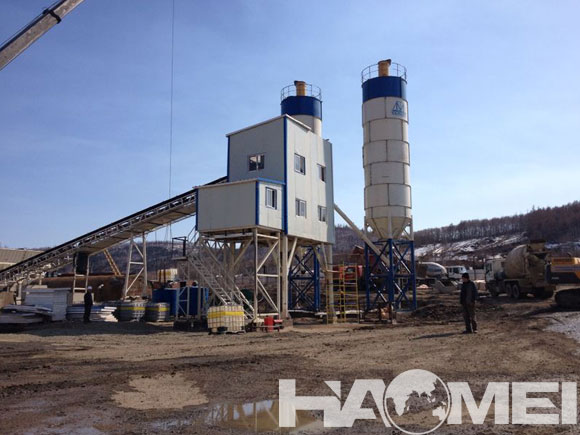

HZS90 Concrete Plant (Ready-mixed concrete mixing plant), also named as concrete plant, is developed by our company on the basis of adopting the world’s sophisticated technologies,
1. Description of HZS90 Concrete Batching Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. Mixing system choose the spiral mixing system
3. Scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying
6. Lubrication system is equipped with over voltage warning and low oil level warning, safe and reliable
7. PC+PLC control system ensures the high reliability.
8. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
9. Human-based intelligent control facilitates the operation greatly.
10. Structural members are durable, and most electric elements adopt world famous brands.
2. The Components of HZS90 Concrete Batching Plant:
2.1. HZS90 Concrete Batching Plant:
1. HZS90 Concrete Batching Plant with modularization structure, HZS Concrete Plant is easy to transport, install and debug more quickly.
2. HZS90 Concrete Plant (Ready-mixed concrete mixing plant), also named as concrete plant, is developed by our company on the basis of adopting the world’s sophisticated technologies, this concrete plant have been widely used in the domestic and overboard, as well as earned a perfect
reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years
2.2. JS1500 Concrete Mixer:
1. JS1500 concrete mixer has the advantages of reasonable design, compact structure, convenient operation, stable working, good mixing quality, high efficiency, low energy consumption, low noise and long life wearing parts, etc.
2. Mixing system: motor, belt pulley, gear, mixing drum.
3. Feeding system: lifting motor, feeding frame, hopper, feeding entrance
2.3. Control System
1. Realize the material metering station, transporting, mixing, unloading of automatic production process. With functions of real-time data processing, automatic control or manual operation, simple and convenient operation.
2.Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and mixing station working data, print all kinds of report data as required.
3. The Features of HZS90 Concrete Batching Plant:
1. The Productivity is 90m3/h
2. Suitable for large and medium size projects, dam, road and bridge.
3. JS1500 twin shaft compulsory concrete mixer with high mixing performance.
4. Low noise, low energy consumption
5. Free training service and spare parts
4. The Technical Parameters of HZS90 Concrete Batching Plant:
Model |
HZS90 |
|
Specification |
Unit |
Value |
Productivity |
m3/h |
90 |
Capacity of Mixer |
m3 |
1.5 |
Discharge Height |
m |
3.8 |
Aggregate Bin |
Quantity |
4 |
Capacity of Aggregate Bin |
m3 |
15 |
Aggregate Bin Capacity |
m3 |
2.4 |
Max. Weighing Value of Aggregate |
kg |
6000 |
Max. Weighing Value of Cement |
kg |
1000 |
Max. Weighing Value of Water |
kg |
500 |
Max. Weighing Value of Additive |
kg |
50 |
Feeding Type |
/ |
Belt |
Cement Silo |
_ |
Optional |
Cement Screw Conveyor |
_ |
Optional |
Control Mode |
_ |
Auto |
