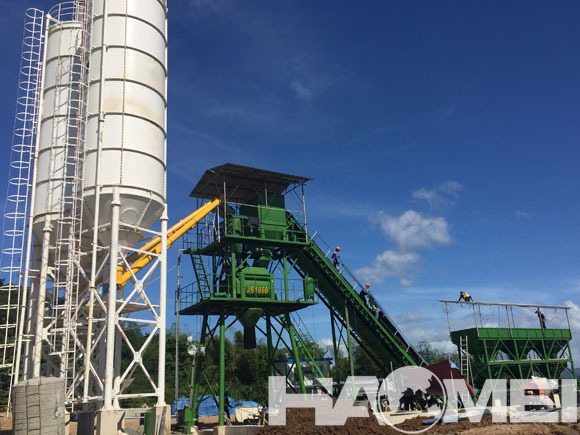

1. Description of HZS60 Concrete Batching Plant:

1. HZS60 Concrete Batching Plant has been widely used in the domestic and abroad, as well as earning a perfect reputation in the construction field.

2. HZS series of Concrete Batching Plant, also named concrete mixing plant,which is developed by our company on the basis of adopting the world's sophisticated technologies, which is composed of batching system, conveying system, mixing system, control system and electrical control system and other accessories.

3. Haomei Machinery Equipment have dedicated in manufacturing concrete batch plant for many years.

2. The Introduction of HZS60 Concrete Batching Plant Components:

1). HZS60 Concrete Batching Plant:

1. Adopts modular structure, easy to install and assembly and convenient to transport.

2. The mixing console adopts JS1000 twin shaft compulsory concrete mixer.

3. Measurement of components and control components are importing from USA, Japan, Germany.

4. Computer control system can keep the accuracy and stable measurement performance.

2). Cement Silo of HZS60 Concrete Batching Plant:

1. Cement silo is suitable for bulk cement and dry fly ash, grain and waterproof.

2. Cement silo is cylinder and supporting structure.

3. Cement silo generally adopts bulk cement conveying concrete truck to delivery the powder into the bin by pneumatic conveying.

3. The Technical Parameters of HZS60 Concrete Batching Plant:

Model	HZS60
Specification	Unit	Value
Productivity	m3/h	60
Capacity of Mixer	m3	1
Discharge Height	m	3.8
Aggregate Bin	Quantity	3
Capacity of Aggregate Bin	m3	10
Aggregate Bin Capacity	m3	1.6
Max. Weighing Value of aggregate	kg	3000
Max. Weighing Value of cement	kg	600
Max. Weighing Value of water	kg	400
Max. Weighing Value of additive	kg	50
Feeding Type	/	Belt
Cement Silo	/	Optional
Cement Screw Conveyor	/	Optional
Control Mode	/	Auto
