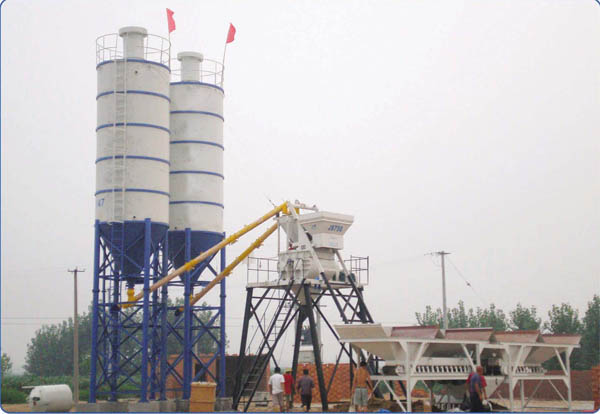

HZS35 Skip-type Concrete Batching Plant

HZS35 Skip-type Concrete Batching Plant

HZS35 series concrete batching plant belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building wor

Product Detail

1. HZS35 series concrete batching plant belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.

2. The main machine of this series use JS series double shaft compulsory mixer, it can mix concrete evenly, with a short period of mixing, long time wearing parts, it can be operated and maintained conveniently, it used control technology with newest deign concept, for example: electric weighing, computer control, digital display, etc., electric weighing has been equipped with buffer device and auto compensation function and the measure precision is high.

3. The sand and stone feeding system use flat belt or herringbone belt, and equipped with maintenance sidewalk, it is the ideal selection for the construction units to produce high quality concrete.



International popular modular structure, with easy installation and assembly

Adapt and apply the most advanced technologies around the world

The mixing system with excellent mixing performance, high efficiency

Main electrical components are from Germany SIEMENS

Reduced Power Consumption On Account Of Short

Suitable for small-scale construction projects


Model HZS35
Specification Unit Value
Productivity m3/h 35
Capacity of Mixer m3 0.75
Mixer Power kw 18.5
Discharge Height m 3.8(for customers choice)
Aggregate Bin Quantity 3
Aggregate Bin Capacity m3 1.2
Max. Weighing Value of aggregate kg 850
Max. Weighing Value of cement kg 500
Max. Weighing Value of water kg 300
Max. Weighing Value of additive kg 30
Aggregate Measuring Accuracy % 2
Water Measuring Accuracy % 1
Cement Measuring Accuracy % 1
Additive Measuring Accuracy % 1
Cement Silo _ Optional
Cement Screw Conveyor _ Optional
Cement Silo Capicity _ Optional
Control Mode _ Auto/Semi control
